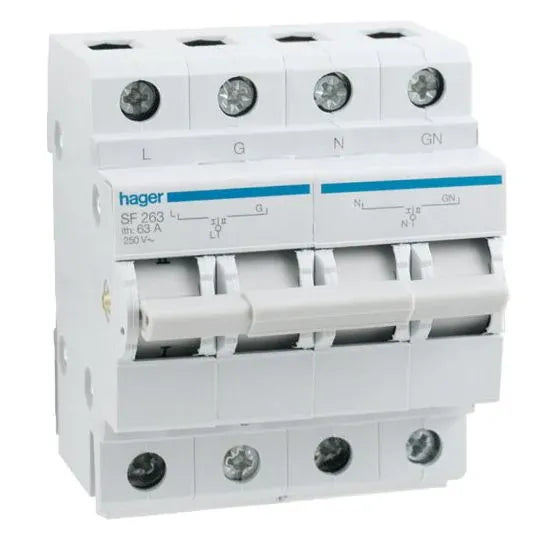

Hager Changeover Switch 2P 63A AC21 DIN Rail Mount IP20 | SF263
Hager Changeover Switch 2P 63A AC21 DIN Rail Mount IP20 | SF263
Regular price
$202.95 AUD
Regular price
Sale price
$202.95 AUD
Unit price
per
Tax included.
Couldn't load pickup availability
Changeover Switch DIN Mount, 230 Volt, 63 Amp AC21 at 240 Volt AC21, 3.6 Watt, 50/60 Hz, 2 Pole, Manual Actuator, 16 sq-mm Flexible/25 sq-mm Rigid, DIN Rail Mounting, Screw Connection, IP20, -25 to 50 deg C, 90 mm Height, 71.5 mm Width, 72 mm Depth
| Number of poles | 2 |
|---|---|
| Min. rated voltage | 230 V |
| Rated voltage | 230 V |
| Number of contacts as change-over contact | 2 |
| Width in number of modular spacings | 4 |
| Short-circuit breaking capacity (Icw) | 6 kA |
| Number of contacts as normally open contact | 0 |
| Voltage type AC-DC | AC |
|---|---|
| With signal lamp | No |
| Degree of protection (IP) | IP20 |
| Rated current | 63 A |
| Number of contacts as normally closed contact | 0 |
| Built-in depth | 72 mm |
| Switching function | Control switch |
Brand: Hager
Manufacturer Part Number: SF263
Barcode: 3250615561008
