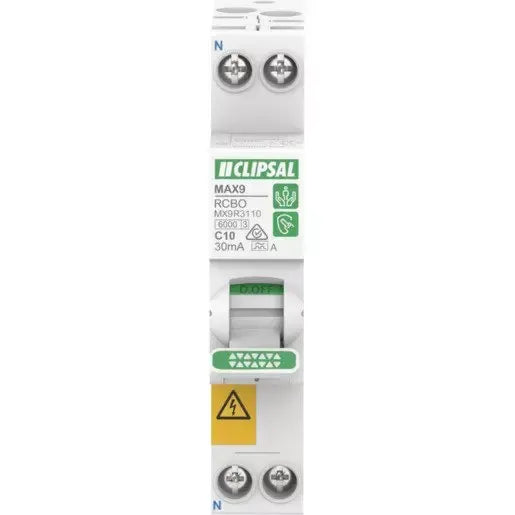

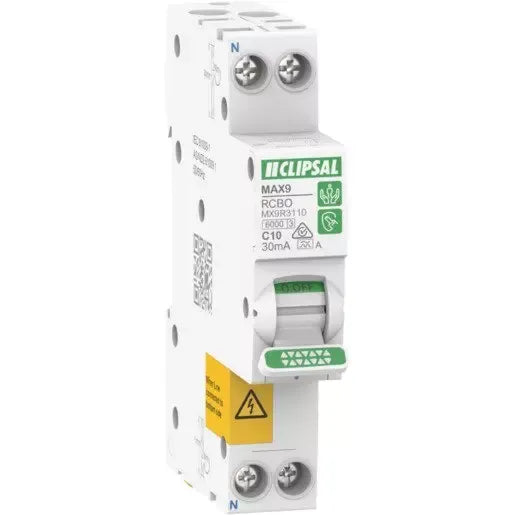

CLIPSAL Max9 RCBO 1Pn C 10A 30mA A Slim | MX9R3110
CLIPSAL Max9 RCBO 1Pn C 10A 30mA A Slim | MX9R3110
Couldn't load pickup availability
This MAX9 product is a residual current breaker with overcurrent protection (RCBO). It is a 1P+N circuit breaker with 1 protected pole, 10A In rated current at 30°C and C tripping curve. The operating frequency is 50Hz or 60Hz. The earth leakage protection class is type A with a sensitivity of 30mA. The earth-leakage protection time delay is instantaneous. The Icn rated short circuit breaking capacity is up to 6000A at 240VAC. It has an electrical endurance going up to 10000 cycles and mechanical endurance going up to 20000 cycles. This product protects against short circuit, cable overload, electrical shock by indirect contact and fire hazards. It brings safety, reliable solution for commercial and industrial applications with high breaking capacity. It has a RCM quality lable. The Ue rated operational voltage is 240VAC. The Ui rated insulation voltage is 440VAC. It has a Uimp rated impulse withstand voltage of 4kV. It can be mounted on DIN rail for modular installation. The width in 9mm pitches is 2. The dimensions are (W) 18mm x (H) 93mm x (D) 73mm. The product color is white (RAL9003). The product weight is 136g. According to IEC 60529 standard, the degree of protection is IP20. The pollution degree is 2. The operating temperature is from -25°C to +70°C. The storage temperature is from -40°C to +85°C. This product is complies with IEC 61009-2-2 and EN/IEC 61009-1 standards.
| Rated current | 10 A |
|---|---|
| Release characteristic | C |
| Anti-nuisance tripping version | No |
| Frequency | 50/60 Hz |
| Degree of protection (IP) | IP20 |
| Disconnection characteristic | Undelayed |
| Ambient temperature during operating | -25-70 °C |
| Built-in depth | 44 mm |
| Surge current capacity | 0.25 kA |
| Rated voltage | 240 V |
| Connectable conductor cross section multi-wired | 1-10 mm² |
| Rated impulse withstand voltage Uimp | 4 kV |
| Over voltage category | 3 |
| Rated insulation voltage Ui | 440 V |
| Width in number of modular spacings | 1 |
|---|---|
| Number of poles (total) | 2 |
| Rated fault current | 30 A |
| Number of protected poles | 1 |
| Leakage current type | A |
| Flush-mounted installation | No |
| Current limiting class | 3 |
| Pollution degree | 2 |
| Rated short-circuit breaking capacity Icn according to EN 61009-1 | 6 kA |
| Voltage type AC-DC | AC |
| Connectable conductor cross section solid-core | 1-16 mm² |
| With interlocking device | Yes |
| Concurrently switching neutral conductor | Yes |
| Model | Max9 |
Brand: CLIPSAL
Manufacturer Part Number: MX9R3110
Barcode: 9311554812676
